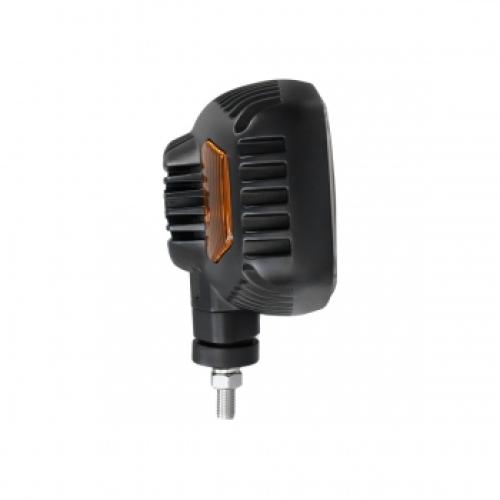

100 Watt LED Headlight with Front Rear Indicator (RH) & DRL

Product Code: LG820REU

Related Products

Driving Lighting Tractor Fit Lighting JCB Manitou Volvo Construction Equipment Driving Lighting Agricultural Lighting Tractor Headlights Headlights

Product Details

100 Watt LED Headlight with Front Rear Indicator (RH) & DRL, 5600 Lumen - LG820R

General Characteristics

• Housing: Powder coated aluminium
• 60w High Beam
• 30w Low Beam
• 10w D.R.L
• 10w Indicator
• 9/32V
• 50,000h
• E Mark Certified
• IP68
• ECE R10, ECE R149, ECE R112, ECE R148, ECE R7 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)

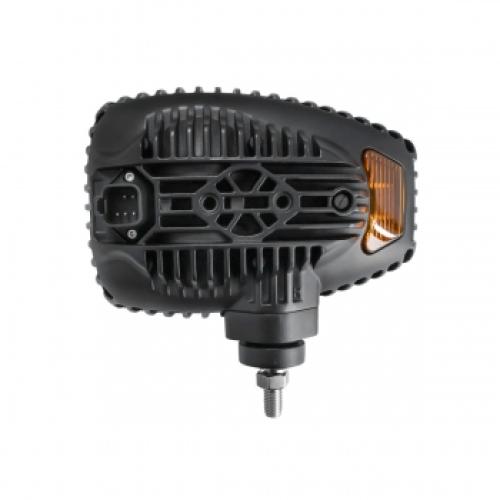

• Supplied With 6 Pin Deutsch Socket & Plug
• Dimensions 229 x 152 x 106mm

Technical Light Properties

• Lightcolor: Cold white
• Colortemperature: 6000K

Electrical Characteristics

• Nominal lamp power: 100 Watt
• 60W high intensity CREE XTE LEDs
• Suitable for 9-32V DC
• 5,600 lumens
• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

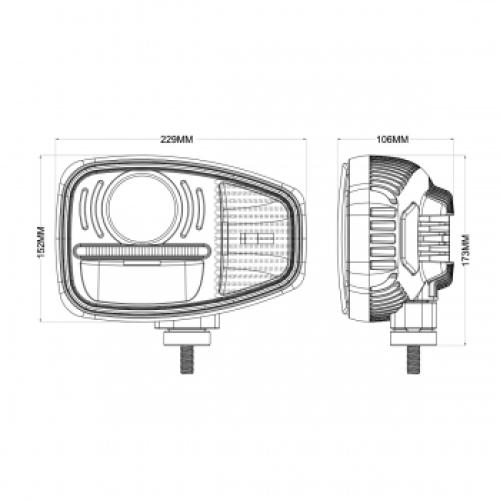

Dimensions

• Lamp width: 229 mm
• Lamp height: 152 mm
• Lamp thickness: 106 mm

O.E.M Ref:

JCB 700/50192,JCB 700/50193

Hella 1EE 996 174-401,1SA996120107,1EE996174201

AEBI (12671021),AEBI (12683795),HELLA (Combi220),MAFI (0005800148),MAN (81251016403)

MAN (81.25101.6403FF),MAN (81251016792),MAN (81AC1258117),MANITOU (929717),PAUS (556625)

SCANIA (20223061),VOLVO (17 286 451),Faresin(ME11096A40)

COMPATIBLE WITH THE FOLLOWING:

Manitou
MLT625 , MLT627 , MLT629 , MT1030 , MT1135 , MT1235 , MT1335 , MT1435 , MT1440

MT1840 , MT625 , MT732 , MT835 , MT928 , MT932 , MT940 , MTX625 , MTX731 , MTX732

JCB
526-56 , 527-58 , 531-70 , 533-105 , 533-140 , 535-95 (Loader) , 536-60 , 540-140 , 540-170 , 540-200 ,

550-140 , 550-80 , FASTRAC 2115 , FASTRAC 2170 , FASTRAC 3200 , FASTRAC 3230 , FASTRAC 7170 ,

FASTRAC 7200 , FASTRAC 7230 ,FASTRAC 7270 , FASTRAC 8250 , FASTRAC 8280 , FASTRAC 8310

Caterpillar,Volvo,Terex

Wiring Diagram

Black is earth
White is DRL
Blue is Indicator
Brown is Dip
Red is Full Beam
