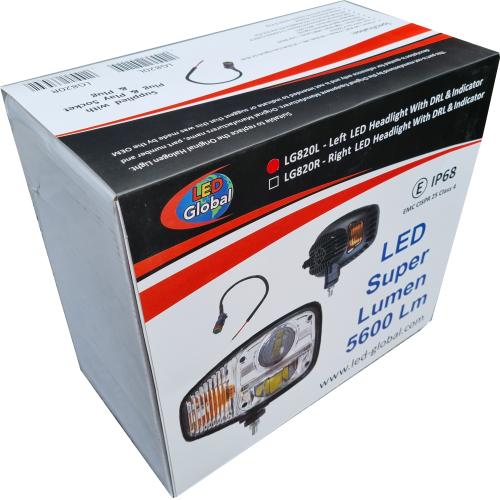

100 Watt LED Headlight with Front/Rear Indicator (LH) & DRL

Product Code: LG820LEU

Price: Login For Price
Status: In Stock
Qty

Related Products

Driving Lighting Tractor Fit Lighting JCB Manitou Volvo Construction Equipment Driving Lighting Agricultural Lighting Tractor Headlights Headlights

Product Details

100 Watt LED Headlight with Front/Rear Indicator (LH) & DRL , 5600 Lumen - LG820L

General Characteristics

  • Housing: Powder Coated Aluminium
  • 60w High Beam
  • 30w Low Beam
  • 10w D.R.L
  • 10w Indicator
  • 9/32V
  • 50,000h
  • E Mark Certified
  • IP68
  • ECE R10, ECE R149, ECE R112, ECE R148, ECE R7 Approved
  • EMC - CISPR25 Class 4 (Radio Frequency Suppression)
  • Supplied With 6 Pin Deutsch Socket & Plug Connection
  • Dimensions 229 x 152 x 106mm
Technical Light Properties

  • Lightcolour: Cold white
  • Colourtemperature: 6000K

Electrical Characteristics

  • Nominal lamp power: 60 Watt
  • 60W high intensity CREE XTE LEDs
  • Suitable for 9-32V DC
  • 5,600 lumens
  • Lux Reading: 50Mtr @ 12Lux
  • Lux Reading: 186Mtr @ 1Lux
  • Vibration Test to 15G
Dimensions

  • Lamp width: 229 mm
  • Lamp height: 152 mm
  • Lamp thickness: 106 mm



O.E.M Ref:


JCB 700/50192,JCB 700/50193

Hella 1EE 996 174-401,1SA996120107,1EE996174201

AEBI (12671021),AEBI (12683795),HELLA (Combi220),MAFI (0005800148),MAN (81251016403)

MAN (81.25101.6403FF),MAN (81251016792),MAN (81AC1258117),MANITOU (929717),PAUS (556625)


SCANIA (20223061),VOLVO (17 286 451),
Faresin (ME11096A40)


COMPATIBLE WITH THE FOLLOWING:


Manitou


MLT625 , MLT627 , MLT629 , MT1030 , MT1135 , MT1235 , MT1335 , MT1435 , MT1440

MT1840 , MT625 , MT732 , MT835 , MT928 , MT932 , MT940 , MTX625 , MTX731 , MTX732

JCB

526-56 , 527-58 , 531-70 , 533-105 , 533-140 , 535-95 (Loader) , 536-60 , 540-140 , 540-170 , 540-200 ,

550-140 , 550-80 , FASTRAC 2115 , FASTRAC 2170 , FASTRAC 3200 , FASTRAC 3230 , FASTRAC 7170 ,

FASTRAC 7200 , FASTRAC 7230 ,FASTRAC 7270 , FASTRAC 8250 , FASTRAC 8280 , FASTRAC 8310


Caterpillar,Volvo,Terex

Wiring Diagram

Black is earth
White is DRL
Blue is Indicator
Brown is Dip
Red is Full Beam
