Complete Plug & Play LED Trailer Light Kit

Product Code: LG576

Related Products

By Industry Tail & Marker Lighting Combination Light Combination Lights Tail Lighting

Product Details

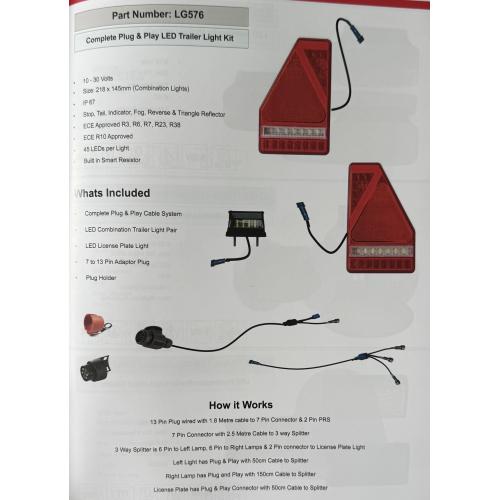

Complete Plug & Play LED Trailer Light Kit- LG576

Kit Includes

1. Complete Plug & Play Cable System
2. LED Combination Trailer Light Pair (LG570 + LG571)
3. LED License Plate Light (LG195)
4. 7 to 13 Pin Adaptor Plug
5. Plug Holder

LED Trailer Tail Light Combination Features

• Left & Right Hand Combination Lights
• 45 LED's
• Stop/Tail/Indicator/Fog/Reverse/Reflector/Triangle
• 9-33vApplication
• 50,000h / E Mark Certified / IP67
• ECE R10, R3, R6, R7, R23, R38, R91 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Built in Smart Load Resistance on Indicators

Technical Light Properties

• Light Colour: Amber/ Red/ White
• Colour temperature: 6000K On Reverse

Electrical Characteristics

• High intensity CREE XTE LEDs
• Suitable for 9-33V DC
• Vibration Test to 15G

Dimensions

• Lamp width: 218 mm
• Lamp height: 145 mm
• Lamp thickness: 35 mm

Technical Wiring Diagram

• White is Earth
• Grey is Tail
• Blue is Brake
• Brown is Fog
• Yellow/Green is Indicator
• Black is Reverse

1. 13 Pin Plug wired with 1.8 metre cable to 7 Pin Connector & 2 Pin PRS
2. 7 Pin Connector with 2.5 metre cable to 3 Way Splitter
3. 3 Way Splitter is 6 Pin to Left Lamp, 6 Pin to Right La,p & 2 Pin connector to License Plate Light
4. Left Light has Plug & Play with 50cm Cable to Splitter
5. Right Light has Plug & Play with 150cm Cable to Splitter
6. License Plate Light has Plug & Play Connector with 50cm Cable to Splitter
